Why the Chimney Breast Is a Damp Magnet

A chimney is the one part of a period property that passes through the entire building envelope. It sits above the roofline, exposed to wind-driven rain on all four faces, and it carries a flue down through the loft, the bedrooms and often the main living room. That makes it the most common source of damp in older homes, and it is why a stain on the chimney breast is rarely a problem with the breast itself.

The symptoms tend to follow a pattern. You might see a brown tide mark spreading out from the skirting, paint blistering near the ceiling, wallpaper lifting in a vertical strip, or a patch of white, fluffy crystals that reappears after you wipe it away. Very often there is a faint musty or sooty smell in the upstairs rooms that becomes stronger in wet weather. Each of these points to something specific, and reading them correctly saves a great deal of money.

Start the Diagnosis at the Roof, Not the Sitting Room

The golden rule with chimney damp is to work from the top down. Water entering at the stack can travel several metres sideways through mortar, rubble infill and old brickwork before it appears inside, so the damp patch is frequently nowhere near the actual defect. Before anyone starts hacking plaster off the chimney breast, get up into the loft and out onto the roof with a competent roofer.

On a slate roof, the junction between the chimney stack and the slates is the usual culprit. Look for the following:

• Failed flashings. The lead apron, soakers and back gutter should be dressed tight against the masonry and set into a chased groove, ideally with a cover flashing over the top. Lifting, cracked or loose lead is a direct route for water.
• Cracked mortar fillets. Many older chimneys rely on a triangular mortar fillet where the roof meets the stack. Mortar shrinks, cracks and pulls away, and a cement fillet will fail far sooner than a proper lead detail.
• Slipped or broken slates. A single cracked slate in the abutment can admit enough water to soak a rafter and show up below.
• Back gutters. Where a chimney sits on the slope, the back gutter takes a huge volume of water. It should be formed in code 4 or code 5 lead, laid to a proper fall, with no ponding.

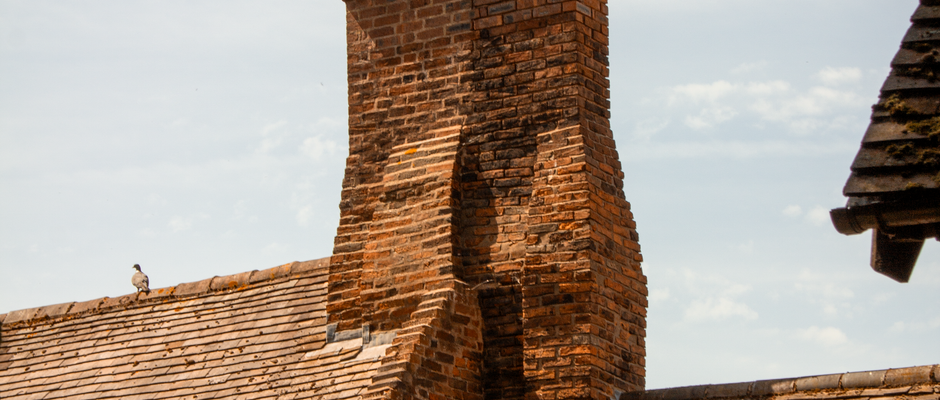

The Stack Itself: Flaunching, Pointing and Render

Above the roofline the chimney takes the worst of the weather. The flaunching is the mortar crown at the very top of the stack, bedding the pots, and it is almost always cracked on a period chimney. Once it fails, rainwater runs straight down the flue and reappears at ground level or on the breast below. It should be raked out and renewed with a generous slope away from the pots.

Pointing matters too. Cement-rich mortar is the enemy of old brickwork: it is harder than the bricks, traps moisture and forces frost damage into the masonry instead. Repoint in a lime mortar matched to the original, and avoid cement render on a stack unless it is genuinely necessary, because it holds water against the brick and hides the deterioration beneath. Cracked or spalling pots should be replaced, and any missing pots capped with a ventilated cowl rather than sealed airtight.

Hygroscopic Salts: When the Damp Is Not Where It Started

Not all chimney damp is a live leak. Burning coal, wood and gas in a flue for decades deposits chloride and nitrate salts in the brickwork and plaster. These salts are hygroscopic, meaning they draw moisture out of the air. The result is a damp patch that behaves oddly: it is worst in humid weather, dries out in a warm summer, and returns each autumn without any obvious leak.

You can often tell the difference by watching the patch through a dry spell. A leak stays damp regardless of the weather; salts will fade. The treatment is not a sealant or a magic paint, which simply traps the problem. The affected plaster normally has to be removed back to the masonry, the salts neutralised or the wall given a salt-resistant backing coat, and the surface finished with a breathable product. If the flue gases have been coming through for years, the contamination can extend well beyond the visible patch, so take advice rather than patching the worst of it.

Blocked and Unventilated Flues

An unused flue that has been sealed top and bottom with no ventilation becomes a cold, damp shaft. Warm air from the rooms leaks in, condenses on the cold brickwork, and the moisture has nowhere to go. This alone can produce damp staining on a chimney breast, particularly in winter.

• Keep flues open where possible, and fit a ventilated cap or cowl if rain is getting in.
• Where a flue is genuinely disused, provide vents at low and high level so air can circulate through the stack. A pair of 100mm vents, one at each end of the flue, is the usual approach.
• Never block a flue with newspaper, foam or a plastic bag. It holds moisture against the masonry and can be a fire risk if the flue is ever reused.

What to Do Inside While You Tackle the Outside

Resist the temptation to redecorate until the external defects are fixed and the masonry has had a chance to dry. Replastering over a live leak just hides it, and gypsum plaster over damp masonry will fail again within a season. Once the roof, flashings, flaunching and ventilation are sorted, allow the wall to dry naturally, with good airflow in the room, and consider a breathable finish such as lime or clay-based paint rather than vinyl silk, which traps moisture in the plaster behind it.

Tackle one defect at a time and monitor the result through a wet winter before moving on. Chimney damp is rarely one single fault, but it is almost always solvable — start at the roof, work downwards, and let the building tell you when it is dry.
