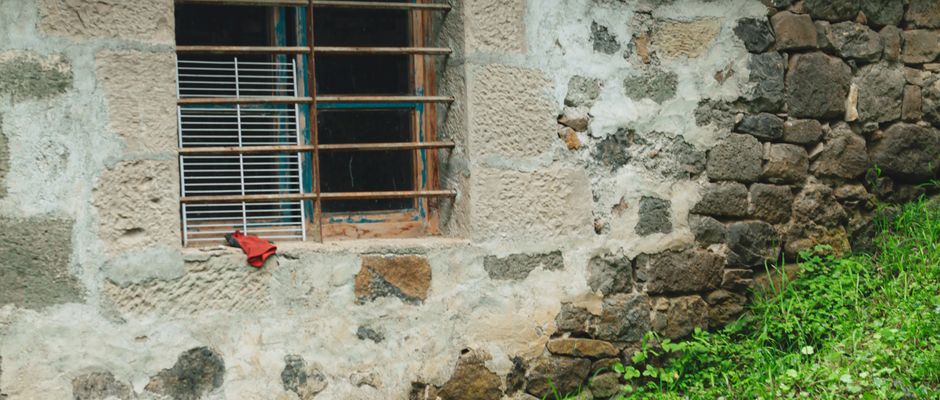

Why Lime Mortar Matters on Traditional Stone Walls

If you own a period cottage, farmhouse or boundary wall built from natural stone, the mortar holding it together is almost certainly lime-based. Lime mortar is soft, breathable and slightly flexible, allowing the wall to move gently with the seasons and to release moisture rather than trap it. Cement mortar, which became the default repair material in the twentieth century, does none of these things. It is hard, brittle and largely impermeable, and when it is forced into the joints of a traditional wall it causes far more harm than good.

The physics is straightforward. Stone walls absorb driving rain and, in older buildings, ground moisture. That water needs somewhere to evaporate. In a lime-built wall it escapes through the mortar joints and the stone face. When joints are repointed in cement, the escape route is sealed. Moisture is then driven into the stone itself, and through repeated freeze-thaw cycles the faces spall and crumble. The cement also shrinks as it cures, pulling away from the stone edges and creating the hairline gaps where decay begins.

Choosing the Right Lime Mortar Mix

For most repointing work on traditional stone, a mix of one part lime putty to two and a half or three parts sharp sand by volume is a sensible starting point, adjusted to match the existing mortar's colour, texture and strength. The golden rule is that the repair mortar should be weaker, softer and more porous than the stone it sits between. If it is stronger, the stone will fail first.

• Non-hydraulic lime putty is the traditional choice. It cures slowly by carbonation, is highly breathable and forgiving, and suits most sheltered walls and interior work.
• Natural hydraulic lime (NHL 2 or NHL 3.5) sets partly through reaction with water, so it hardens faster and tolerates damp conditions better. It is useful on exposed elevations and in cooler weather.
• Sand should be well-graded sharp sand, not soft builder's sand, and free of clay and silt. The aggregate determines the mortar's colour as much as the binder does.
• Water must be clean and, ideally, not excessively hard. Add it sparingly, aiming for a stiff, buttery consistency that holds its shape on a trowel.

Never add cement “to make it go off”, and avoid lime mortars containing any Portland cement at all where the surrounding fabric is historic. If you are unsure what is already in your wall, a simple test is to scrape a little mortar out and drop it into vinegar. Lime fizzes gently; cement will barely react.

Preparing the Joints Properly

Preparation is where most repointing jobs succeed or fail. Start by raking out the old mortar to a depth of roughly twice the width of the joint, and no less than 20mm where the wall allows it. Anything shallower will simply fall out within a year or two. Use a plugging chisel and a lump hammer, or a mortar rake on softer stone, and work carefully so you do not chip the arrises.

Once raked, brush out the dust with a stiff bristle brush and flush the joints with clean water using a hose or a spray bottle. This is not optional. A dry, dusty joint will suck the moisture out of the mortar before it has a chance to cure, leaving a weak, crumbly bond. On very porous or friable stone, dampen the wall two or three times over half an hour before you start pointing.

If the wall has deeply eroded stones, voids behind the joints or failing lintels, deal with those first. Repointing a wall with structural problems simply hides them for a season or two.

Pointing Technique and Joint Finish

Work in small sections, no more than a square metre or so at a time, and never in direct sunlight or in temperatures below about 5°C. Pack the mortar firmly into the joint with a pointing trowel or a small jointing tool, working from the bottom of the wall upwards. Fill in layers if the joint is deep, rather than trying to force it all in at once.

Once the mortar has firmed up – typically after 30 to 60 minutes, depending on the weather – finish the joint. For most traditional stonework a flush or slightly recessed finish suits best, with the mortar set back just a millimetre or two from the stone face. This lets water run off the stone rather than sitting on a proud bead of mortar. A brushed or lightly textured finish works well on rubble stone, while ashlar and squared coursed stone often looks best with a neat, slightly struck joint. Avoid weatherstruck and ribbon-pointed joints, which are Victorian cement-era fashions and look out of place on earlier walls.

Curing Conditions and Aftercare

Lime mortar does not dry; it cures. Non-hydraulic lime carbonates slowly as it draws carbon dioxide from the air, and this process needs moisture and mild temperatures. In warm, dry or windy conditions you must protect the work from drying out too quickly.

• Dampen the wall lightly with a fine mist once or twice a day for the first three to five days in summer.
• Cover with hessian or damp sacking on exposed elevations, and fix polythene sheeting over the top to keep rain off without sealing the wall.
• Avoid frost entirely. Do not point between late October and early April unless you can guarantee protection.
• Leave it alone for at least a month. Do not pressure-wash, paint or apply sealant to newly pointed joints.

Full carbonation takes many months, sometimes a year or more in thick joints, and the mortar will look softer and paler during that time than it will finally settle. This is normal. It will gradually harden, blend with the surrounding stone and gain the slightly uneven, weathered character that makes old walls so attractive.

A Note on Boundaries and Garden Walls

The same principles apply to boundary walls, retaining walls and gate piers, though these are more exposed and often carry more water. Use NHL 3.5 rather than putty lime for greater durability, make sure any coping stones are securely bedded and slightly overhanging to throw water clear, and check that weep holes or drainage gaps in retaining walls are clear. A well-pointed stone boundary wall, done once with lime and a little patience, will happily outlast a cement-repointed one three times over.
