Why Lime Matters in an Old Stone Wall

If you own a stone cottage, the walls are not simply a barrier — they are a living, breathing system. Traditional stone buildings were never designed to keep water out entirely. They were designed to absorb moisture and let it evaporate again, and lime mortar is central to that process. It is softer, more porous and far more vapour-permeable than cement, so damp can move through the joints and dry out harmlessly.

Repoint a cottage in cement and you create a hard, impermeable skin. Moisture trapped behind it has nowhere to go but into the stone itself. Over a few winters, that means spalling faces, crumbling quoins and rising damp that no amount of injection will cure. Choosing the right lime — and matching it properly to your wall — is one of the most important maintenance decisions you will make.

Non-Hydraulic Lime: The Gentle, Breathable Option

Non-hydraulic lime is made from pure limestone and comes as lime putty or as a bagged hydrate. It sets by carbonation, slowly reabsorbing carbon dioxide from the air over weeks and months rather than hardening chemically. That gives it three useful qualities: it stays workable for a long time, it remains flexible, and it is extremely vapour-permeable.

It is the right choice for soft, porous stones — many limestones, chalk, and the rubble walls found across the Cotswolds, Dorset and the Chilterns — as well as for cob and early brickwork. The trade-off is time. Putty mortar needs to be kept damp for days after pointing and should not be allowed to dry out quickly in sun or wind. A sheltered, slightly shaded wall is ideal; a fully exposed gable in February is not.

Hydraulic Lime: Where You Need a Faster Set

Natural hydraulic lime (NHL) contains reactive silicates, so it sets by reaction with water as well as by carbonation. It hardens faster, tolerates damper conditions and stands up better to driving rain. It is graded by strength: NHL 2 (feebly hydraulic), NHL 3.5 (moderately hydraulic) and NHL 5 (eminently hydraulic).

As a rough guide for cottage work:

• NHL 2 for soft, sheltered stonework and interior or protected elevations.
• NHL 3.5 as the general-purpose choice for most stone cottage walls and chimney stacks.
• NHL 5 for hard, dense stone, exposed coastal walls, or where a quick set is essential.

Even the strongest NHL is significantly weaker and more breathable than cement. It is not a like-for-like substitute, but it is far more forgiving on an old building.

Matching Your Mortar to the Stone

The golden rule is that the mortar must be softer than the stone it holds. If it is harder, movement and moisture will attack the stone first, and you will lose the very fabric you are trying to protect. Test a hidden area: scratch an old joint and a stone face with a nail. The joint should give first.

Aggregate matters just as much as the binder. Aim to match the original in both colour and grading — usually a sharp, well-graded pit or river sand, not a soft builder's sand. A typical mix is 1 part lime to 2.5 or 3 parts sand by volume, but the original mortar is your best specification. Where a joint has survived 200 years, there is little to improve on.

Getting the Pointing Right: Method and Mix

Preparation is where most repointing goes wrong. Rake out the joints to at least 1.5 to 2 times the width of the joint — usually 15–20mm — and square off the edges so the new mortar has something to key into. Brush out dust and thoroughly dampen the wall; a dry, thirsty stone will pull the water out of the mortar before it can cure.

Pack the mortar in firmly in layers, and finish flush or slightly recessed with a wood or stiff brush. Avoid proud, ribboned pointing; it traps water on the ledge and looks wrong on a vernacular building. Protect new work from frost, rain and fast drying for at least a week, and mist it with water in warm weather. Non-hydraulic work may need damp hessian for longer.

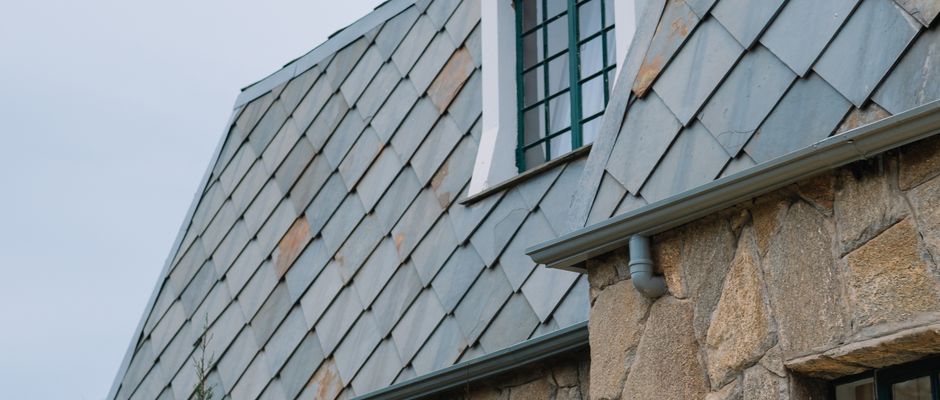

Slate Roofs, Ridges and Chimneys

Lime advice does not stop at wall level. On a traditional slate roof, ridge and hip tiles are often bedded in lime mortar, and the same rules apply: a soft, breathable bed allows the roof to move with the seasons without cracking. Repointing a chimney stack in cement is a common mistake — stacks take the worst of the weather and need to flex and dry.

Where mortar fillets sit at abutments and flashings, lime is preferable to cement on older buildings, though lead remains the more durable detail. When you next have the roof checked, ask about the condition of the bedding mortar and the chimney joints at the same time. Sorting both together saves scaffolding and preserves the character that makes a period property worth owning.
